LAKE MASTER® 13'1"
NEW ZEALANDER CATAMARAN®
Home / NewZealander
.png)
THE BOAT STORAGE MIRACLE
World's only 13ft Catamaran that
fits in a 5x5 Storage unit

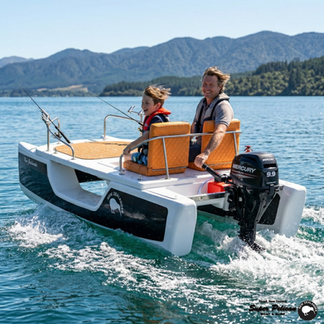

The entry-level hero of the New Zealander series. The Lake Master was born from a simple realization: The best boat is the one that doesn't own you. We took world-class New Zealand catamaran design and optimized it for the North American explorer. The result is a 13' 1" powerhouse that is rugged enough for the Great Lakes, yet modular enough to fit in the corner of your garage.
"It’s the pickup truck of the water—rugged, reliable, and ready to go where the big rigs can't."
GALLERY
UNSINKABLE
FOAM-FILLED HULLS
Technology: Just like a Boston Whaler, the "New Zealander" utilizes advanced foam core construction. This closed-cell technology provides exceptional buoyancy, making the boat virtually unsinkable, even if swamped.
*"Unsinkable" refers to the hull’s positive buoyancy construction; please still wear your life jacket.
SPECIFICATIONS
BUILD INFORMATION
SPECIFICATIONS
Length 13' 1" (4.0m)
Beam 5'10"
Bottom Width 5'9'
Max. Recommended HP 9.9 HP
Fuel Capacity 3.2 gal. (Standard Mercury External Tank)
Max. Person Capacity 4 persons
Max. Person Weight 661 lbs(300 kg).
Max. Person, Motor & Gear Weight 1,283 lbs(582kg).
Interior Depth N/A
Transom Height 15''
Deadrise N/A (Twin-hull catamaran)
Hull Material High-Density closed-cell foam / Poly- composite
Average Dry Weight 420 lbs(191KG).
Average Package Weight 590 lbs(On Pallet).
Package Height Modular** (Max 14")
Package Width Modular** (Max 6'3")
Package Length Modular** (Max 6'5")
Storage Length (w/Outboard Trimmed Down) Long Term** (5' x 5' storage unit)
MOTOR OPTIONS
Mercury® FourStroke
AVAILABLE MOTOR EST. SPEEDS OPTION PRICE ENGINE CAPACITY
4hp Tiller 9km/h (5.0 knots) +$1,535 USD 123cc (1-cylinder)
6hp Tiller EFI 16 km/h (8.6 knots) +$1,695 USD 123cc (1-cylinder)
9.9hp Tiller EFI 32 km/h (17.0 knots) +$2,765 USD 209cc (2-cylinder)
FEATURES
COMFORT, CONVENIENCE & PEACE OF MIND
-
Backed by the New Zealander Promise—engineered for durability and owner simplicity.
-
Transport Canada (TC) Safety Certified (TP1335 compliance).
-
Unsinkable* Construction: Flotation meets or exceeds safety requirements via high-density, closed-cell foam-filled hulls.
-
Heavy-duty stainless steel bow & stern eyes for secure docking and transport.
-
Integrated stainless steel handrails for passenger safety and easy boarding.
-
Dignified Stability: Twin-hull catamaran design provides a level, high-stability platform that essentially functions as a "floating private island."
THE STORAGE MIRACLE (MODULARITY)
-
9-Piece Modular System: The world’s only 13' 1" catamaran that can be dismantled into manageable components.
-
30-Minute Transformation: Go from "winter storage" to "lake-ready" in half an hour with standard tools.
-
The 5x5 Footprint: Engineered to fit inside a standard 5x5 storage unit, eliminating the need for expensive marina fees or dedicated driveway space.
INTERIOR
-
Vast, Flat Open Deck: Optimized for fishing, hunting, or "tailgating on the water."
-
Multi-Use Bench Seating: Flexible seating arrangements for up to 4 passengers.
-
Dynamic Social Deck: Rejecting the "floating bus" layout of fixed chairs to provide a social stage where freedom of movement is the primary luxury for up to 3 passengers.
-
Optional Heritage Pine Decking: Plantation-grown New Zealand pine, thermally treated for hardwood-like durability without chemicals.
-
Non-skid Deck Surface: High-traction finish for safety in wet conditions.
-
Optional Captain’s Chair: Raised pedestal seating for All-day Fishing trips.
FUNCTIONAL
-
Frictionless Ownership: Capped at 9.9 HP, removing the requirement for Pleasure Craft Licensing and hull registration in Canada.
-
External Fuel System: Designed for standard Mercury Marine® 3.2-gal portable tanks for easy refills at any gas station.
-
Integrated Rod Holders: Pre-configured for up to 6 fishing rods (with optional canopy).
CONSTRUCTION & EXTERIOR
-
Designed in Taupō, New Zealand; Assembled in Canada at our Ontario facility.
-
High-Density Poly-composite Construction: 100% wood-free and corrosion-proof for a lifetime of maintenance-free use.
-
Weight-Optimized Engineering: 190kg (418 lbs) total dry weight for easy handling by two adults.
-
Catamaran Efficiency: Low-draft design for superior shallow-water performance and quicker planing with smaller outboards.
-
Rugged Exterior Finish: Available in high-contrast Black/White or custom utility finishes.
ELECTRICAL & POWER
-
Mercury Marine® Optimized: Engineered, tested, and balanced specifically for Mercury 4HP, 6HP, and 9.9HP EFI FourStroke outboards.
TRAILER (THE UTILITY ADVANTAGE)
-
Omni-Compatible Design: Optimized to fit a standard 6' x 14' Aluminum Utility Flatbed trailer.
-
Zero Specialized Equipment: No dedicated "boat trailer" required; use your existing utility trailer for your boat on Saturday and your hardware runs on Monday.
-
Light-Load Towing: At 190kg, the Lake Master is towable by virtually any vehicle with a hitch—from a Land Cruiser to a Holden Ute.
